Ansible是工作新出现的自动化运维工具，基于Python开发，太忙集合了众多运维工具的文详维轻优点，实现了批量系统配置、自动作效批量程序部署、化运批量运行命令等功能。松提升工接下来我们接着上篇文章，率下继续为大家介绍。工作

　　阅读这篇文章之前，太忙推荐阅读：运维工作太忙？文详维轻一文详解Ansible自动化运维，轻松提升工作效率（上）！自动作效

　　系统管理模块

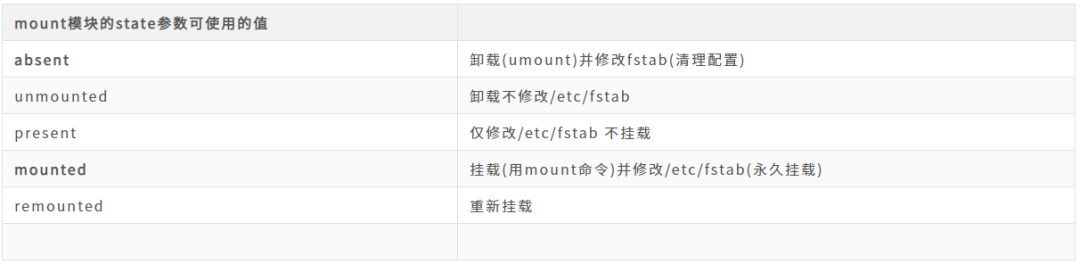

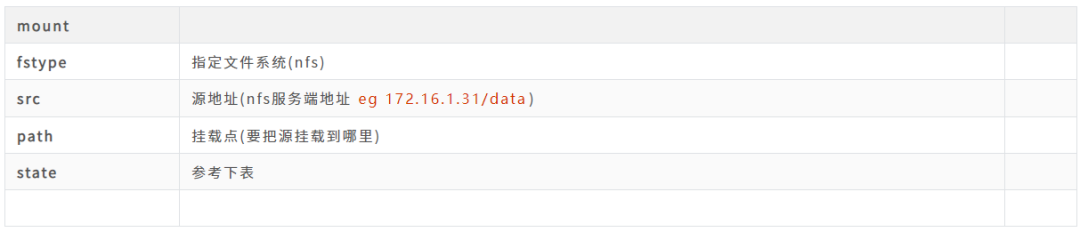

　　1)mount模块

　　案例01-挂载案例

web01把 nfs共享的化运目录/data目录挂载到 web01的/upload_video 步骤01_web01上面创建挂载点/upload_video ansible web -m file -a path=/upload_video state=directory 步骤02_挂载nfs ansible web -m mount -a fstype=nfs src="172.16.1.31:/data" path=/upload_video state=mounted ansible web -a df -h ansible web -a tail -2 /etc/fstab

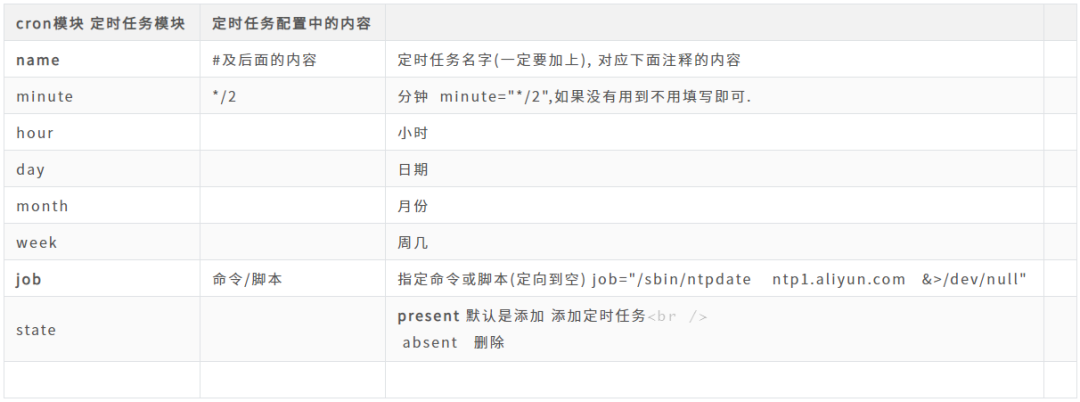

　　2)cron定时任务模块

　　案例01-添加自动同步时间的定时任务

#1. sync time lidao996 */2 * * * * /sbin/ntpdate ntp1.aliyun.com &>/dev/null 步骤01_备份数据 ansible all -a cp /var/spool/cron/root /tmp/ ansible all -a ls -l /tmp/root ansible all -a crontab -r 步骤02_书写定时任务 ansible all -m cron -a name="sync time by lidao996 20221111" minute="*/2" job="/sbin/ntpdate ntp1.aliyun.com &>/dev/null" state=present

　　用户管理模块

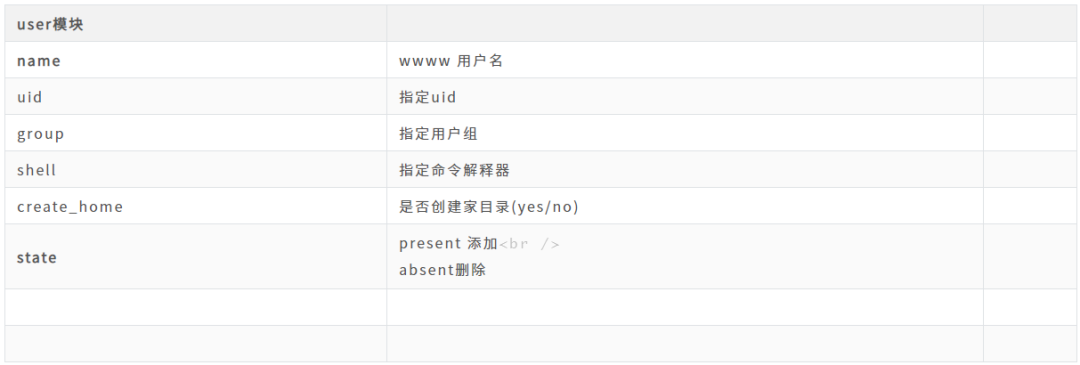

　　1)user

　　案例01-创建用户lidao996

[root@m01 ~]# ansible web -m user -a name=lidao996

　　案例02-创建虚拟用户tengine,指定uid为10086

useradd -u 10086 -s /sbin/nologin -M tengine [root@m01 ~]# ansible web -m user -a name=tengine uid=10086 shell=/sbin/nologin create_home=no state=present 172.16.1.7 | CHANGED => { "ansible_facts": { "discovered_interpreter_python": "/usr/bin/python" }, "changed": true, "comment": "", "create_home": false, "group": 10086, "home": "/home/tengine", "name": "tengine", "shell": "/sbin/nologin", "state": "present", "system": false, "uid": 10086 } [root@m01 ~]# ansible web -a id tengine 172.16.1.7 | CHANGED | rc=0 >> uid=10086(tengine) gid=10086(tengine) groups=10086(tengine) [root@m01 ~]# ansible web -a grep tengine /etc/passwd 172.16.1.7 | CHANGED | rc=0 >> tengine:x:10086:10086::/home/tengine:/sbin/nologin

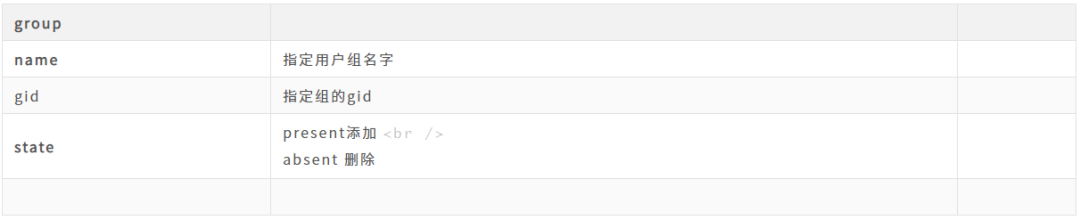

　　2)group模块

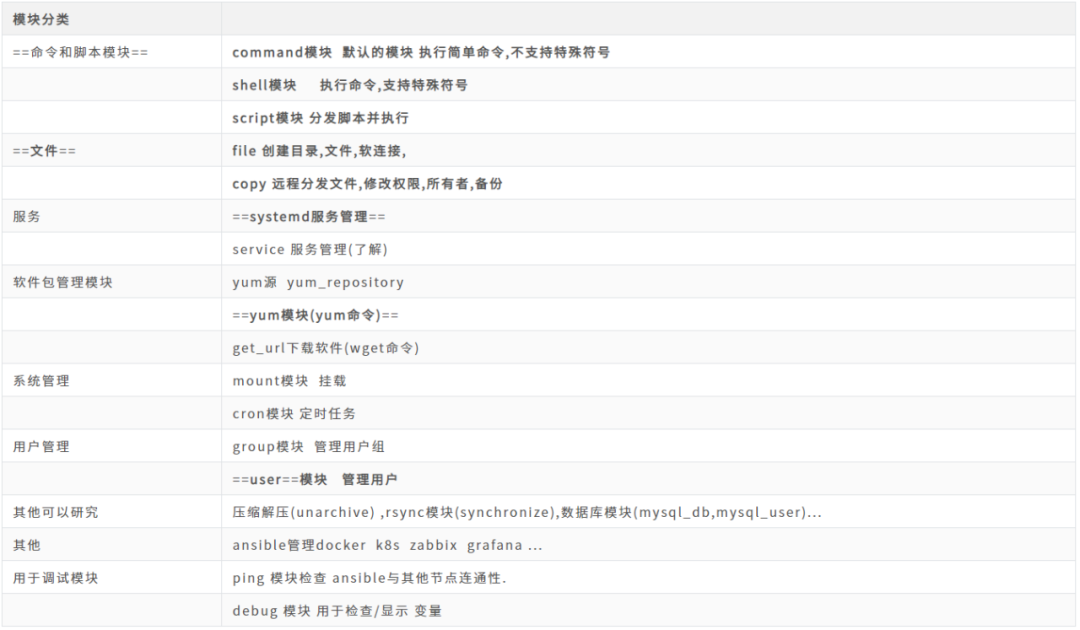

　　模块总结

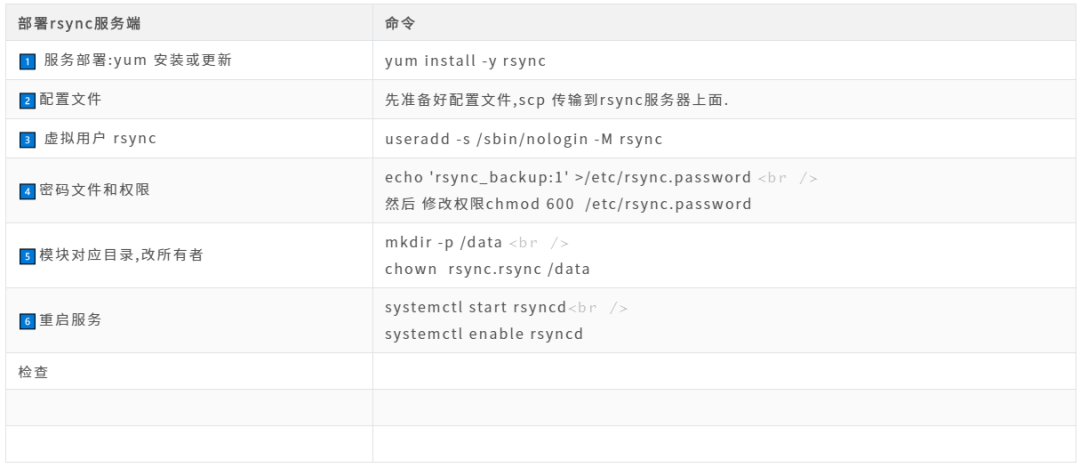

　　Ansible模块实战-部署rsync服务端

##rsyncd.conf start## ##rsyncd 20221111 fake super = yes uid = rsync gid = rsync use chroot = no max connections = 200 timeout = 300 pid file = /var/run/rsyncd.pid lock file = /var/run/rsync.lock log file = /var/log/rsyncd.log ignore errors read only = false list = false hosts allow = 172.16.1.0/24 #hosts deny = 0.0.0.0/32 auth users = rsync_backup secrets file = /etc/rsync.password [data] comment = "backup dir by oldboy lidao996" path = /data [backup] comment = "backup dir by oldboy lidao996" path = /backup [nfsbackup] comment = nfsbackup dir by lidao996 path = /nfsbackup

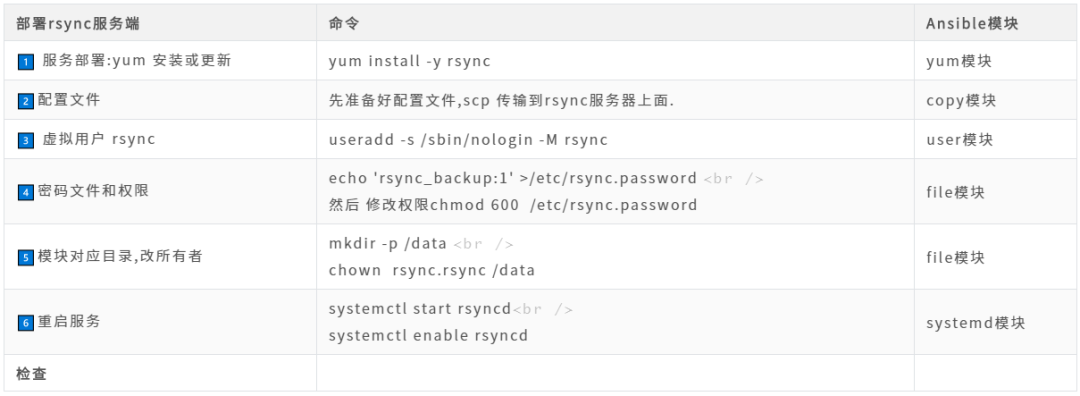

　　根据命令及对应操作选择ansible模块

　　根据选择的模块实现对应的功能

　　1)服务部署：yum安装或更新

ansible backup -m yum -a name=rsync state=lastest

　　2)配置文件分发

mkdir -p /server/ans/pro-rsync 准备配置文件存放在 上面目录中 rsyncd.conf ansible backup -m copy -a src=/server/ans/pro-rsync/rsyncd.conf dest=/etc/rsyncd.conf backup=yes

　　3)虚拟用户 rsync

ansible backup -m user -a name=rsync shell=/sbin/nologin create_home=no state=present

　　4)密码文件和权限

创建文件 ansible backup -m file -a path=/etc/rsync.password mode=600 state=touch 增加 ansible backup -m lineinfile -a path=/etc/rsync.password line="rsync_backup:1"

　　5)模块对应目录，改所有者

ansible backup -m file -a path=/data owner=rsync group=rsync state=directory

　　6)重启服务

ansible backup -m systemd -a name=rsyncd enabled=yes state=started

　　7)命令行测试

[root@m01 /server/ans/pro-rsync]# rsync -av /etc/hostname rsync_backup@172.16.1.31::data

　　8)指定hosts文件的松提升工位置

[root@m01 /server/ans/pro-rsync]# tree /server/ans/pro-rsync/ /server/ans/pro-rsync/ ├── hosts └── rsyncd.conf 0 directories, 2 files [root@m01 /server/ans/pro-rsync]# ansible -i hosts all -m ping

　　Ansible-playbook(剧本)

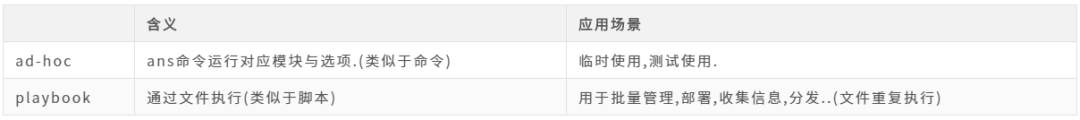

　　ansible ad-hoc vs playbook区别

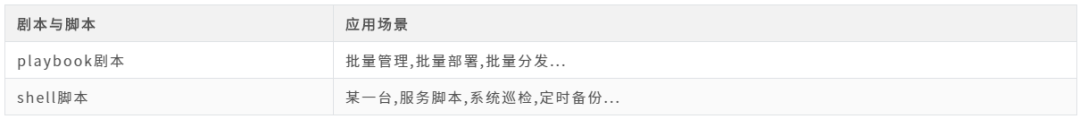

　　playbook vs shell脚本

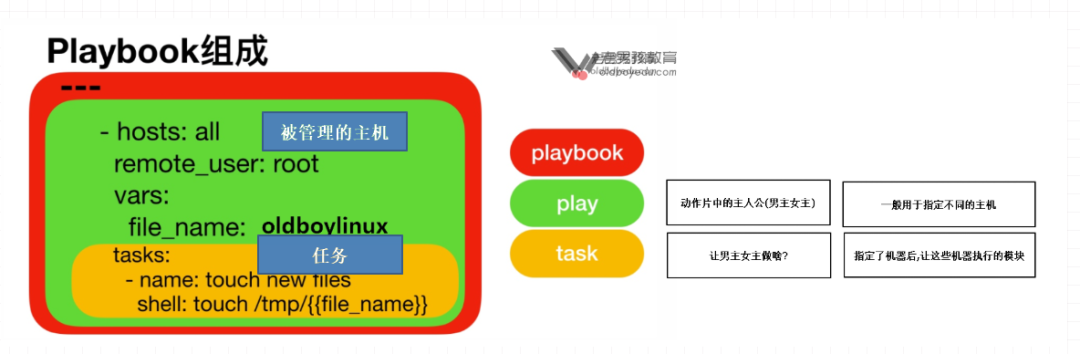

　　Playbook剧本极速使用指南

　　剧本格式叫yaml格式yml

　　缩进，不要用tab键，率下空格

　　核心格式剧本中所有的工作内容要对齐

　　对齐的时候不能使用tab键

　　只能使用空格，2个空格

　　hosts用于指定在哪些主机执行指令

　　tasks: 用于对于这些主机，运行什么模块及选项

　　案例01-在所有机器的免费源码下载/tmp下面创建lidao.txt

[root@m01 /server/ans/playbook]# cat 01.touch.yml - hosts: all vars: filename: lidao.txt tasks: - name: touch file shell: touch /tmp/{{ filename}} cp /etc/ansible/hosts . ansible-playbook -i hosts 01.touch.yml [root@m01 /server/ans/playbook]# tree /server/ans/playbook/ /server/ans/playbook/ ├── 01.touch.yml └── hosts 0 directories, 2 files - hosts: all tasks: - name: touch file shell: touch /tmp/lida.txt

　　案例02-添加定时同步时间的定时任务

　　原始命令行的ansible命令：

ansible all -m cron -a name="sync time by lidao996 20221111" minute="*/2" job="/sbin/ntpdate ntp1.aliyun.com &>/dev/null" state=present ansible -i hosts all -a crontab -l

　　修改为剧本之后

#简单粗暴版本 --- - hosts: all tasks: - name: add cron sync time cron: name="sync time by lidao996 20221111" minute="*/2" job="/sbin/ntpdate ntp1.aliyun.com &>/dev/null" state=present #格式优化后 --- - hosts: all tasks: - name: add cron sync time cron: name: "sync time by lidao996 20221111" minute: "*/2" job: "/sbin/ntpdate ntp1.aliyun.com &>/dev/null" state: present

　　在剧本中使用模块和选项，选项最好是一行一个选项，选项后面跟着冒号，选项要对其与缩进。

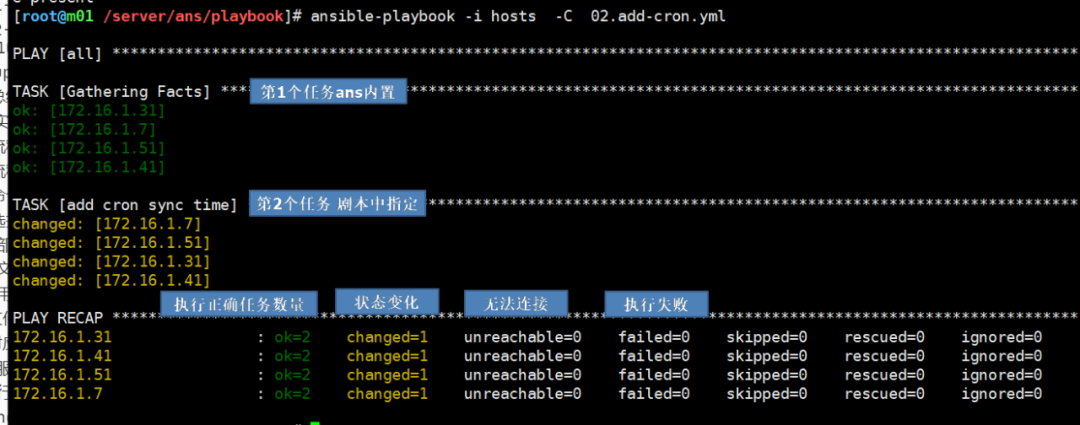

[root@m01 /server/ans/playbook]# ansible -i hosts all -a crontab -l 172.16.1.7 | CHANGED | rc=0 >> #Ansible: sync time by lidao996 20221111 */2 * * * * /sbin/ntpdate ntp1.aliyun.com &>/dev/null 172.16.1.31 | CHANGED | rc=0 >> #Ansible: sync time by lidao996 20221111 */2 * * * * /sbin/ntpdate ntp1.aliyun.com &>/dev/null 172.16.1.41 | CHANGED | rc=0 >> #Ansible: sync time by lidao996 20221111 */2 * * * * /sbin/ntpdate ntp1.aliyun.com &>/dev/null 172.16.1.51 | CHANGED | rc=0 >> #Ansible: sync time by lidao996 20221111 */2 * * * * /sbin/ntpdate ntp1.aliyun.com &>/dev/null

　　案例03-企业案例-批量下载安装zabbix-agent2-6.0客户端并启动

--- - hosts: all tasks: - name: 1. download zabbix agent2 rpm get_url: ur : https://mirrors.tuna.tsinghua.edu.cn/zabbix/zabbix/6.0/rhel/7/x86_64/zabbix-agent2-6.0.0-1.el7.x86_64.rpm dest: /tmp/ validate_certs: no - name: 2. install zabbix agent2 rpm yu : name: /tmp/zabbix-agent2-6.0.0-1.el7.x86_64.rpm state: installed - name: 3. start zabbix agent2 service s stemd: name: zabbix-agent2 enabled: yes state: started

　　案例04-部署rsync服务端(剧本)

### 1) 服务部署:yum 安装或更新 ansible backup -m yum -a name=rsync state=lastest ### 2) 配置文件分发 mkdir -p /server/ans/pro-rsync 准备配置文件存放在 上面目录中 rsyncd.conf ansible backup -m copy -a src=/server/ans/pro-rsync/rsyncd.conf dest=/etc/rsyncd.conf backup=yes ### 3) 虚拟用户 rsync ansible backup -m user -a name=rsync shell=/sbin/nologin create_home=no state=present ### 4)密码文件和权限 创建文件 ansible backup -m file -a path=/etc/rsync.password mode=600 state=touch 增加 ansible backup -m lineinfile -a path=/etc/rsync.password line="rsync_backup:1" ### 5)模块对应目录,改所有者 ansible backup -m file -a path=/data owner=rsync group=rsync state=directory ### 6) 重启服务 ansible backup -m systemd -a name=rsyncd enabled=yes state=started [root@m01 /server/ans/playbook]# ansible -i hosts backup -m ping 172.16.1.41 | SUCCESS => { "ansible_facts": { "discovered_interpreter_python": "/usr/bin/python" }, "changed": false, "ping": "pong" } [root@m01 /server/ans/playbook]# cat 05-backup-resyncd.yml --- - hosts: backup tasks: # - name: 1) 服务部署:yum 安装或更新 # yum: # name: rsync # state: latest - name: 2) 配置文件分发 copy: src: /server/ans/playbook/rsyncd.conf dest: /etc/rsyncd.conf backup: yes - name: 3) 虚拟用户 rsync user: name: rsync shell: /sbin/nologin create_home: no state: present - name: 4) 密码文件和权限 lineinfile: path: /etc/rsync.password mode: 0600 line: "rsync_backup:1" create: yes - name: 5) 模块对应目录,改所有者 file: path: /data/ owner: rsync group: rsync state: directory - name: 6) 重启服务 systemd: name: rsyncd enabled: yes state: started

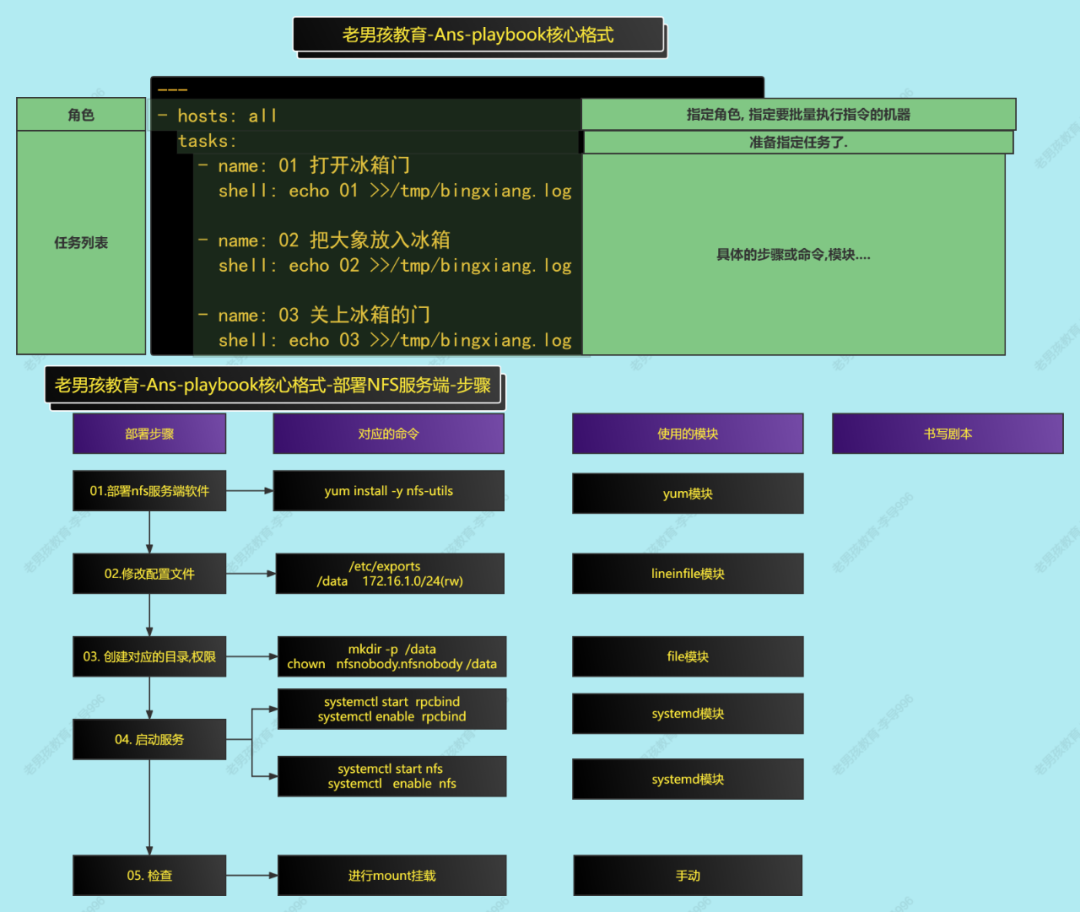

　　案例05-部署nfs服务端全流程

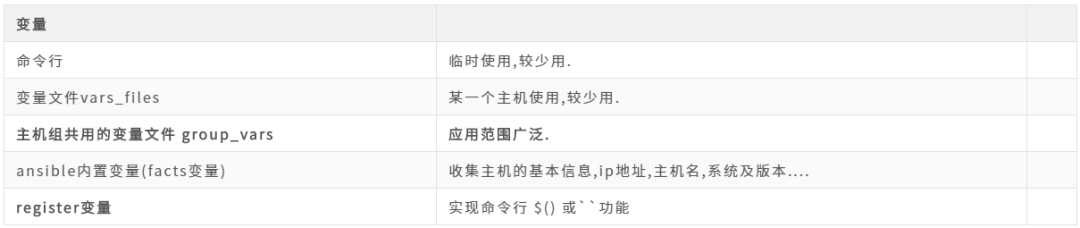

　　Ansible变量系列

　　变量详解

　　1)vars、vars_files、group_vars

[root@m01 /server/ans/playbook]# cat 07.vars_dir.yml --- - hosts: all vars: dir_name: /oldboy_lidao file_name: lidao996.icu tasks: - name: 01. mkdir file: path: "{{ dir_name}}" state: directory - name: 02. touch file: path: "{{ dir_name}}/{{ file_name}}" state: touch

　　把变量存放到一个文件中. 剧本比较大的时候.

[root@m01 /server/ans/playbook]# cat 07.vars_dir.yml --- - hosts: all vars: dir_name: /oldboy_lidao file_name: lidao996.icu tasks: - name: 01. mkdir file: path: "{{ dir_name}}" state: directory - name: 02. touch file: path: "{{ dir_name}}/{{ file_name}}" state: touch

　　创建一个变量文件,给某个组共用

用法:需要创建一个group_vars目录. 目录下面创建以主机组命名的目录. 存放变量文件vars.yml group_vars/ 目录 lb/vars.yml #存放lb组的变量 web/vars.yml #存放web组的变量 data/vars.yml #存放xxx组的变量 all/vars.yml #所有主机共用的变量

　　案例01-根据不同的主机组创建对应的目录

group_vars/ 目录 web/vars.yml #存放web组的变量 data/vars.yml #存放xxx组的变量 all/vars.yml #所有主机共用的变量 web服务器创建 /app/code/目录 dir_name: /app/code/ data服务端创建 /data/目录 dir_name: /data/ #参考: ##变量文件内容 [root@m01 /server/ans/playbook]# cat group_vars/data/vars.yml dir_name: /datav2/ [root@m01 /server/ans/playbook]# cat group_vars/web/vars.yml dir_name: /app/code/ [root@m01 /server/ans/playbook]# tree group_vars/ group_vars/ ├── data │ └── vars.yml └── web └── vars.yml 3 directories, 3 files #剧本内容 [root@m01 /server/ans/playbook]# cat 09.vars_group_vars_dir.yml - hosts: all tasks: - name: 根据主机创建不同的目录 file: path: "{{ dir_name}}" state: directory

　　案例02-使用group_vars的all组定义变量

[root@m01 /server/ans/playbook]# tree group_vars/ group_vars/ ├── all │ └── vars.yml ├── data │ └── vars.yml └── web └── vars.yml 3 directories, 3 files [root@m01 /server/ans/playbook]# cat group_vars/all/vars.yml dir_name_code: /app/code/ dir_name_data: /data/ [root@m01 /server/ans/playbook]# cat 09.vars_group_vars_dir.yml - hosts: all tasks: - name: 01 {{ dir_name_code}} file: path: "{{ dir_name_code}}" state: directory - name: 02 {{ dir_name_data}} file: path: "{{ dir_name_data}}" state: directory 剧本目录,目录结构 [root@m01 /server/ans/playbook]# tree . ├── 01.touch.yml ├── 02.add-cron.yml ├── 03.add-cron-you.yml ├── 04.install-zabbix-agent2.yml ├── 05-backup-resyncd.yml ├── 06-nfs-server.yml ├── 07.vars_dir.yml ├── 08.vars_files_dir.yml ├── 09.vars_group_vars_dir.yml ├── group_vars │ ├── all │ │ └── vars.yml │ ├── data │ │ └── vars.yml │ └── web │ └── vars.yml ├── hosts ├── rsyncd.conf └── vars.yml 4 directories, 15 files

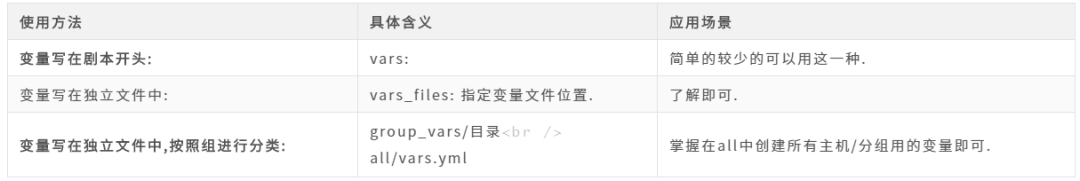

　　变量基础定义小结

　　2)ansible-facts变量

　　facts变量说明== : ansible内置变量,执行剧本，有个默认的任务(task)，收集每个主机的基本信息。IT技术网

#查看 ansible facts变量内容 ansible -i hosts web -m setup 常用fact变量 ansible_hostname #主机名 ansible_memtotal_mb #内存大小(总计) 单位mb ansible_processor_vcpus #cpu数量 ansible_default_ipv4.address #默认的网卡ip eth0 ansible_distribution #系统发行版本名字 CentOS Ubuntu Debian ... ansible_processor_cores #核心总数 ansible_date_time.date #当前时间 年-月-日

　　案例01-系统巡检-获取所有机器的基础信息保存到/tmp/主机名命名文件中

步骤: 01.创建文件 02.写入内容 [root@m01 /server/ans/playbook]# cat 10.vars_sys_info.yml --- - hosts: all tasks: - name: 创建文件并写入系统基本信息 lineinfile: path: /tmp/{{ ansible_hostname}} create: yes line: "主机名: {{ ansible_hostname}}\n ip地址: {{ ansible_default_ipv4.address}}\n 内存总计: {{ ansible_memtotal_mb}}" - hosts: all gather_facts: no vars: dir_name: /oldboy_lidao file_name: lidao996.icu tasks: - name: 01. mkdir file: path: "{{ dir_name}}" state: directory - name: 02. touch file: path: "{{ dir_name}}/{{ file_name}}" state: touch

　　3)ansible-register变量

　　创建压缩包压缩包名字包含时间，tar打包压缩，date获取时间。

tar zcf /tmp/etc-`date +%F`.tar.gz /etc/

　　案例01-创建以主机名命名文件/opt/主机名

步骤: 01.获取主机名:hostname 02.创建文件,使用上一步的结果 register: 变量名字 #这个变量的内容,叫json格式. register: hostname #json格式,只想要输出标准输出 stdout standard output 标准输出. hostname.stdout #取出命令的结果 `hostname` [root@m01 /server/ans/playbook]# cat 12.vars_register.yml --- - hosts: all tasks: - name: 01.获取主机名 shell: hostname register: hostname - name: 输出变量内容 debug: msg: "{{ hostname}}" [root@m01 /server/ans/playbook]# cat 12.vars_register.yml --- - hosts: all tasks: - name: 01.获取主机名 shell: hostname register: hostname - name: 输出变量内容 debug: msg: "{{ hostname.stdout}}" - name: 02. 创建文件 file: path: /opt/{{ hostname.stdout}} state: touch

　　register变量输出结果

{ "msg": { "changed": true, "cmd": "hostname", "delta": "0:00:00.008150", "end": "2022-04-14 12:32:14.587547", "failed": false, "rc": 0, #命令的返回值,0表示正确,非0错误. "start": "2022-04-14 12:32:14.579397", "stderr": "", #错误信息 "stderr_lines": [], "stdout": "backup02", #这个最常用. 命令的结果,输出. "stdout_lines": [ "backup02" ] } } register: hostname hostname.stdout #正常输出信息 hostname.rc #取出返回值. hostname.stderr #取出错误信息.

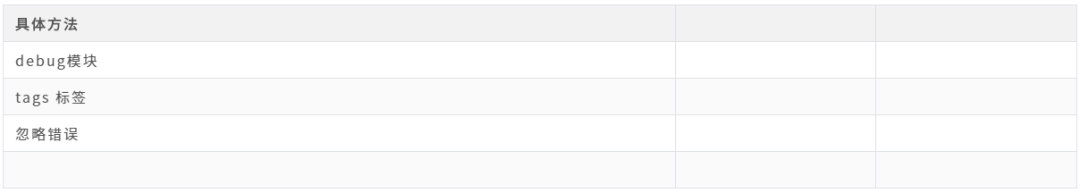

　　Ansible-进阶-剧本调试方法

　　Debug模块

　　案例01-调试-nfs服务端部署剧本

[root@m01 /server/ans/playbook]# cat 13-debug-nfs-server.yml --- - hosts: db tasks: - name: 01. 部署nfs服务端软件 yum: name: nfs-utils state: installed - name: 02. 修改配置文件 lineinfile: path: /etc/exports line: "/data 172.16.1.0/24(rw)" state: present backup: yes - name: 03. 创建对应的目录,权限 file: path: /data/ owner: nfsnobody group: nfsnobody state: directory register: file_jieguo - name: 输出,显示这个过程 debug: msg: "{{ file_jieguo}}" - name: 04. 启动服务-rpc服务 systemd: name: rpcbind enabled: yes state: started - name: 05. 启动服务-nfs服务 systemd: name: nfs enabled: yes state: started

　　tags标签

　　一般用于调试剧本，给剧本个每个task可以设置个标签

　　运行剧本的时候可以运行指定标签

　　运行剧本的时候排除某些标签

[root@m01 /server/ans/playbook]# cat 14-tags-nfs-server.yml --- - hosts: db tasks: - name: 01. 部署nfs服务端软件 yum: name: nfs-utils state: installed tags: - install - name: 02. 修改配置文件 lineinfile: path: /etc/exports line: "/data 172.16.1.0/24(rw)" state: present backup: yes tags: - conf - conf_file - name: 03. 创建对应的目录,权限 file: path: /data/ owner: nfsnobody group: nfsnobody state: directory tags: - conf - conf_dir - name: 04. 启动服务-rpc服务 systemd: name: rpcbind enabled: yes state: started tags: - start_srv - name: 05. 启动服务-nfs服务 systemd: name: nfs enabled: yes state: started tags: - start_srv

　　运行指定的标签

ansible-playbook -i hosts --tags conf 14-tags-nfs-server.yml ansible-playbook -i hosts --tags conf_file,conf_dir 14-tags-nfs-server.yml

　　运行剧本的时候排除指定的标签

ansible-playbook -i hosts --skip-tags install,conf_file 14-tags-nfs-server.yml

　　忽略错误

　　用于运行剧本的时候，强制让某个任务(模块)运行即使出错了，也不要中断我们的剧本。

[root@m01 /server/ans/playbook]# cat 15-ignore-nfs-server.yml --- - hosts: db tasks: - name: 01. 部署nfs服务端软件 yum: name: nfs-util state: installed ignore_errors: yes tags: - install - name: 02. 修改配置文件 lineinfile: path: /etc/exports line: "/data 172.16.1.0/24(rw)" state: present backup: yes tags: - conf - conf_file - name: 03. 创建对应的目录,权限 file: path: /data/ owner: nfsnobody group: nfsnobody state: directory tags: - conf - conf_dir - name: 04. 启动服务-rpc服务 systemd: name: rpcbind enabled: yes state: started tags: - start_srv - name: 05. 启动服务-nfs服务 systemd: name: nfs enabled: yes state: started tags: - start_srv

　　Ansible-进阶应用

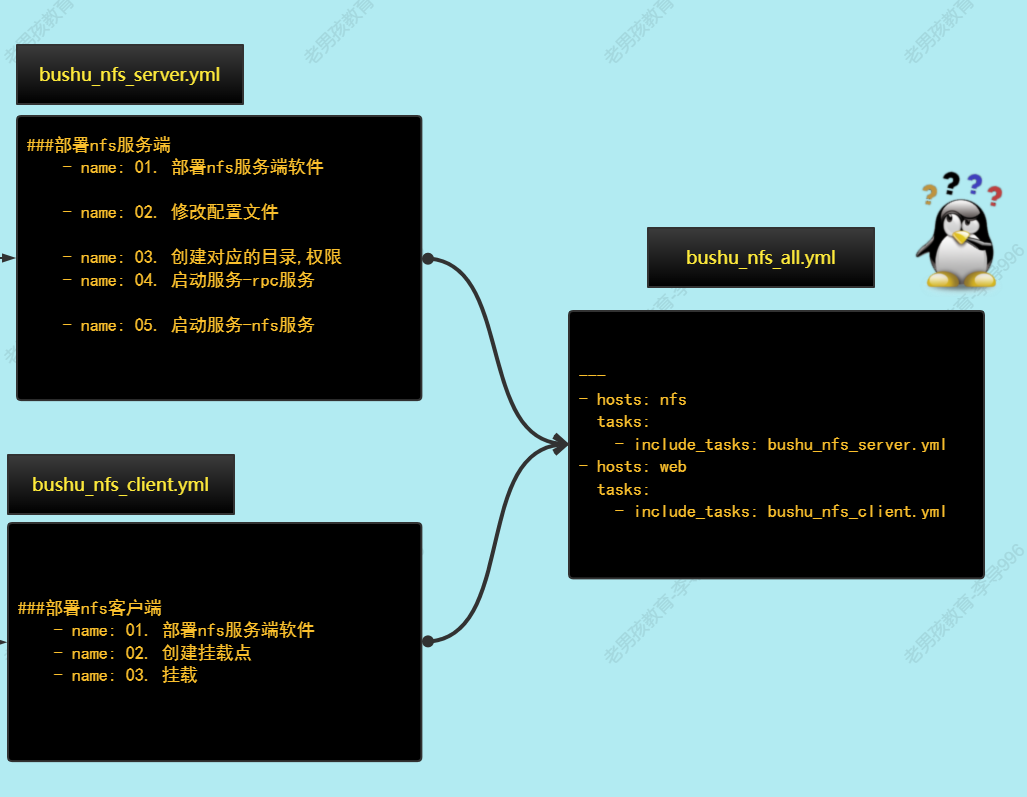

　　include文件包含：把一个任务分成多个剧本来实现，书写个总剧本文件，通过include_tasks：引用子剧本文件。WordPress模板

　　子剧本文件中只需要些模块部分(task部分即可)
